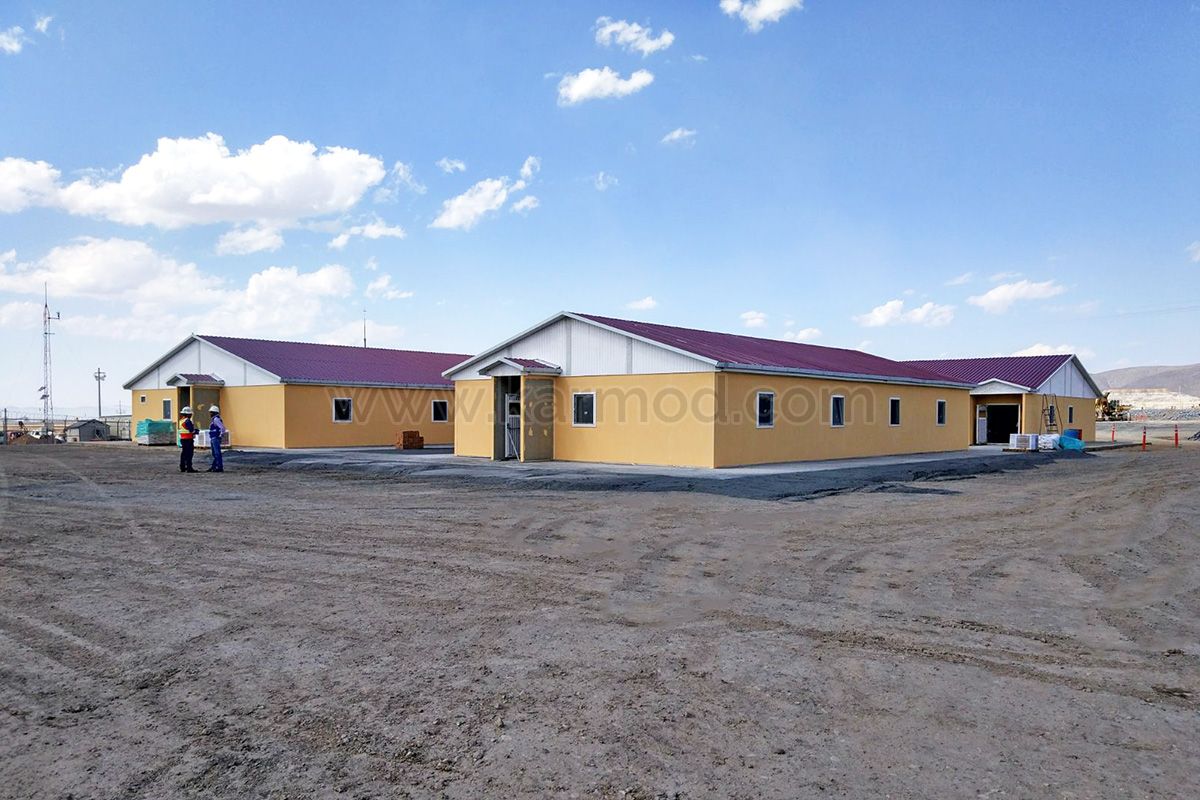

Modular Accommodation 370 m²

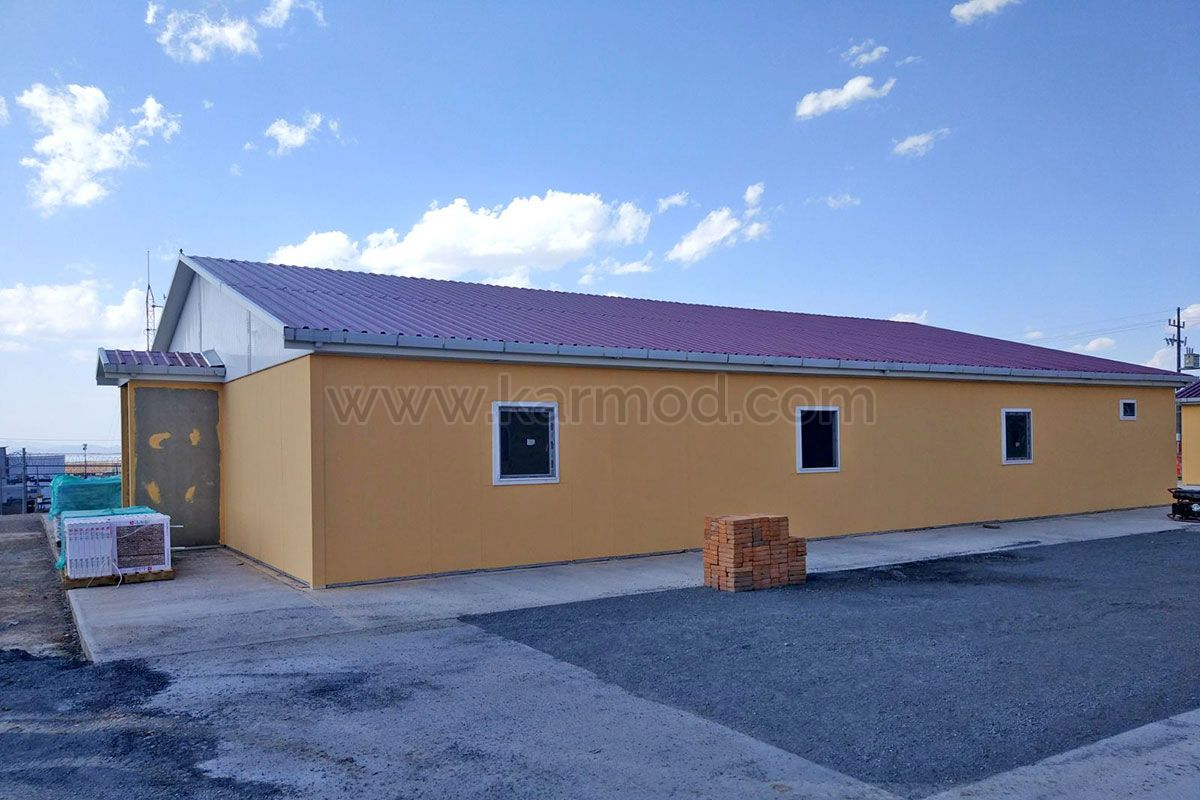

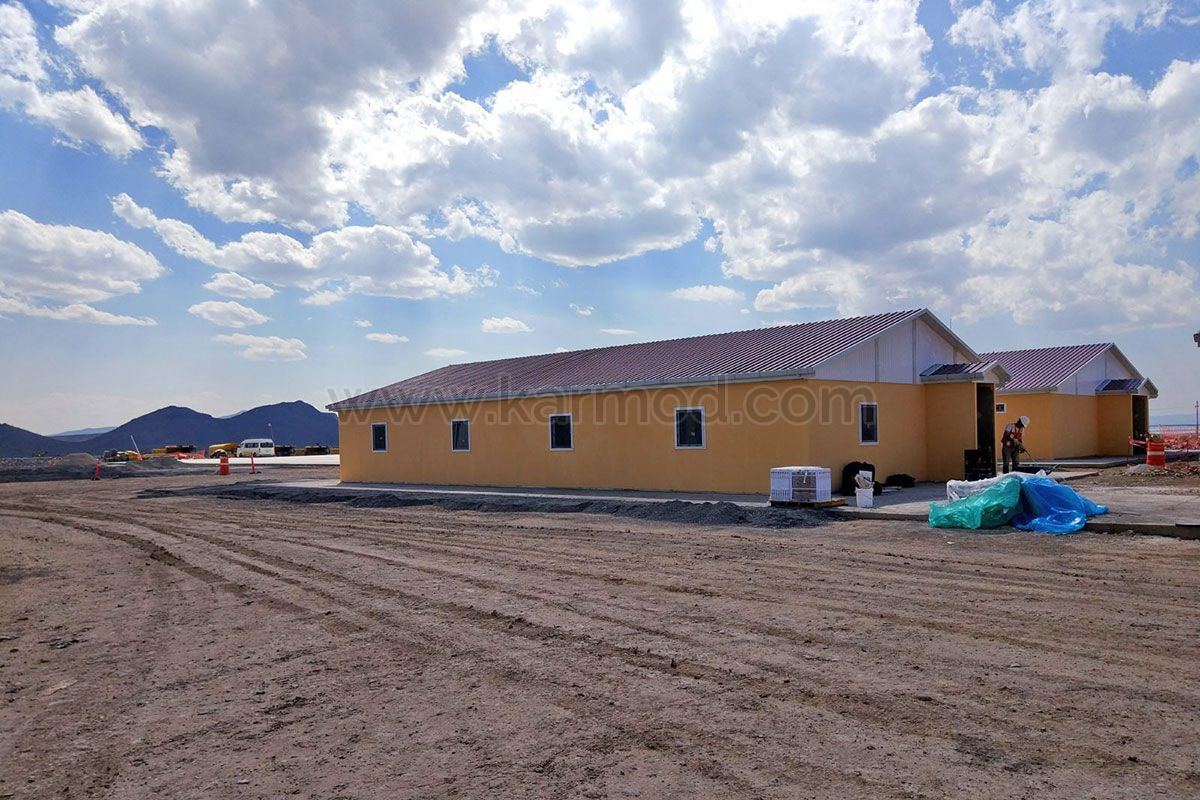

820 m² Prefabricated Construction Site Facility for the Mexico Gold Mine

In the gold mine area located in the Mazapil region of Mexico, a country in North America, Karmod Prefabricated Construction Site Buildings were chosen to provide comfortable and safe accommodation for workers.

The prefabricated site, spanning a total area of 820 m², was quickly assembled and made ready for use.

Fast Installation and Safe Living Areas: Delivered in 23 Days

Thanks to the rapid production and installation advantages of the prefabricated building system, a modern camp area was created for the technical staff and workers at the mine site.

The construction site was designed with worker safety and comfort in mind.

Project Details: Building Features

General Building Information

1. Building Model: Prefabricated Single-Story System
2. Number of Buildings: 3 Blocks (Each single-story)
3. Total Area: 820 m²
4. Project Year: 2018
5. Location: Mazapil, Mexico
6. Completion Time: 23 days

Prefabricated Buildings Installed

1. Prefabricated Dormitory Building

• Total Area: 370 m²
• Capacity: This structure, used as a dormitory, is designed to provide comfortable and safe accommodation for workers employed at the mine.
• Includes: Bedrooms, rest areas, and toilet and shower facilities compliant with hygiene standards.

2. Prefabricated Dining Hall Building

1. Total Area: 260 m²
2. Closed Dining Hall: A spacious and airy dining hall.
3. Kitchen and Serving Area: Equipped with modern kitchen equipment for preparing and serving daily meals.
4. Pantry and Storage: Special area for the safe storage of food supplies.

3. Prefabricated Office and Laboratory Building

1. Total Area: 190 m²
2. Office Section: Work offices for site management and administrative staff.
3. Laboratory Section: Special laboratory area for mining analyses.
4. Equipment: Technical equipment and structural features compliant with occupational safety standards.

Logistics and Installation Process

The production and delivery of prefabricated structures were carried out as follows:

1. All components of the prefabricated buildings were pre-manufactured in modern Karmod factories.
2. The products were shipped by sea to the port in Mexico.
3. They were transported to the construction site by road from the port.
4. The Karmod assembly team on-site completed the installation in 23 days.

Karmod Prefabricated: Global Construction Site Solutions

Karmod Prefabricated provides prefabricated construction site structures for energy, mining, and construction projects worldwide, ensuring the highest levels of workplace safety and employee comfort.

Our prefabricated structures, produced to international standards, are preferred for their durability and functionality.

Karmod Prefabricated Construction Site Structures

1. Prefabricated Dormitory Buildings
2. Prefabricated Dining Hall Buildings
3. Prefabricated Office and Administrative Buildings
4. Prefabricated Laboratory Buildings
5. Health and First Aid Units
6. Education and Meeting Rooms
7. Prayer Rooms and Rest Areas
8. Laundry and Cafeteria Areas
9. Storage and Logistics Areas
